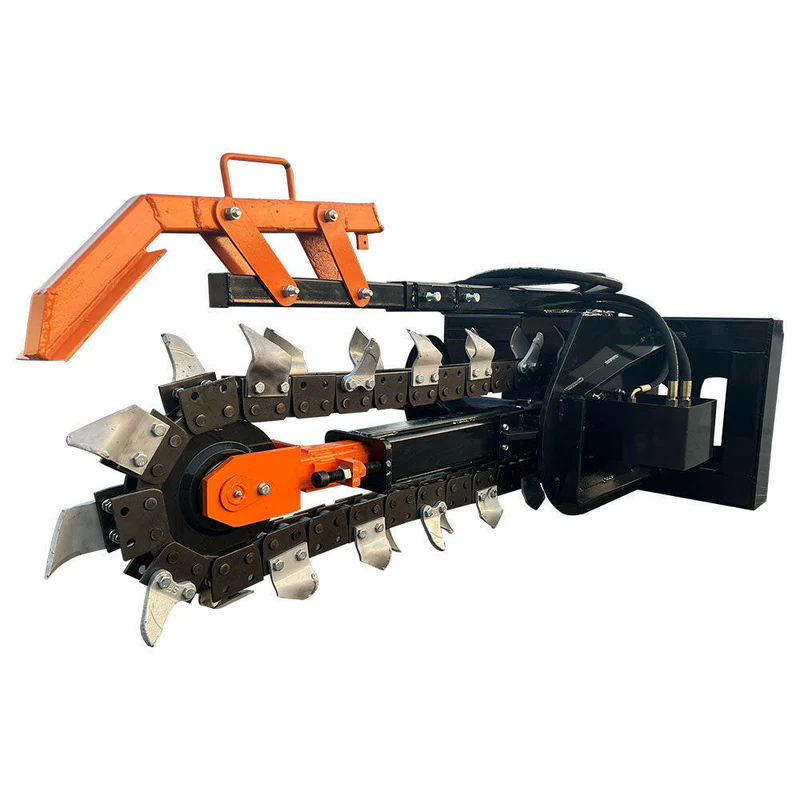

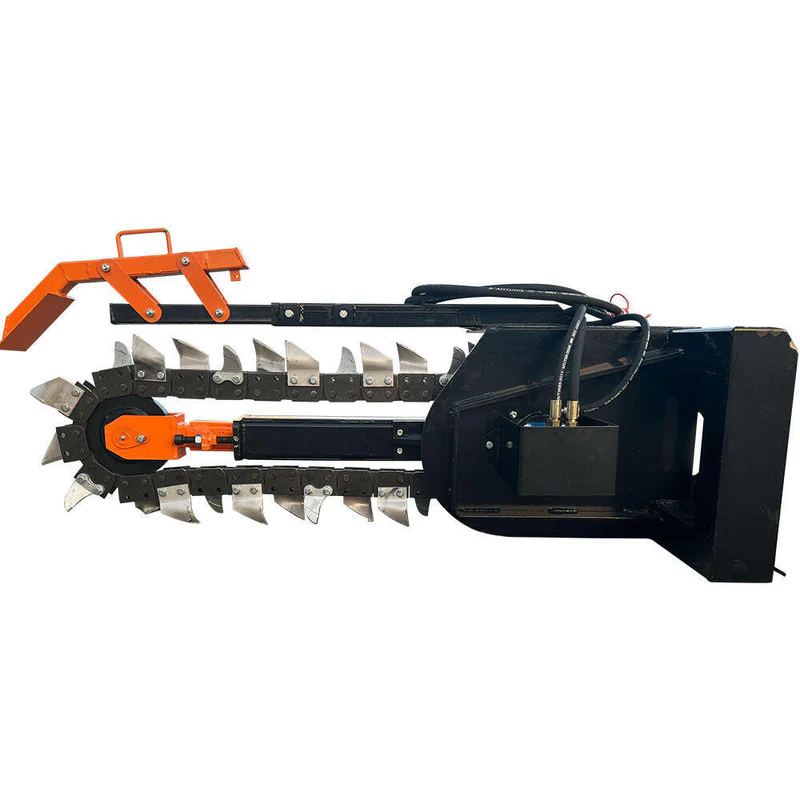

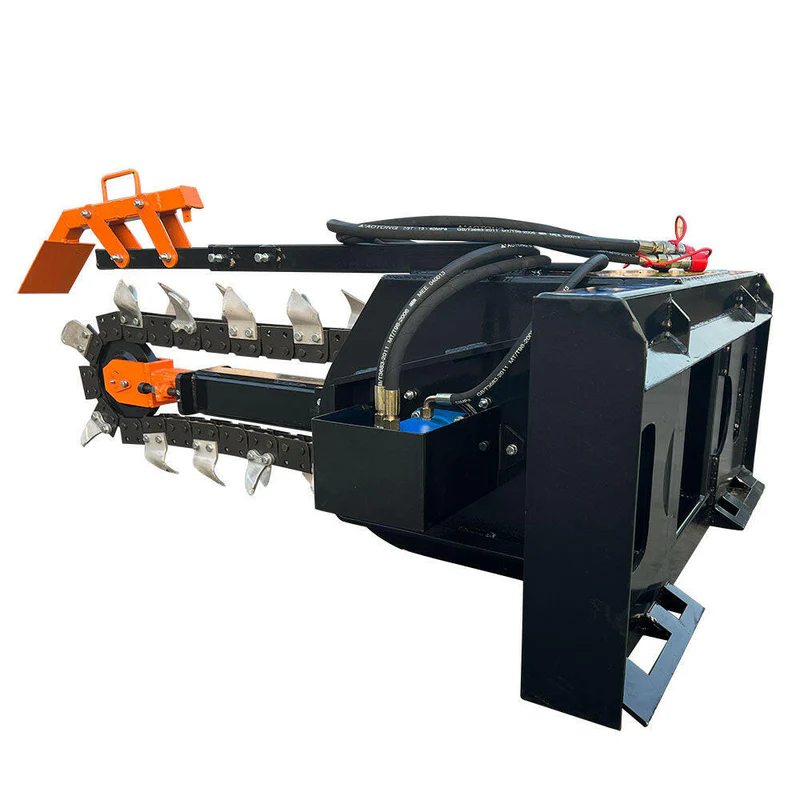

48″ Skid Steer Trencher Attachment | AGT-ECSSCT72

Description

Manual

Parts List

Features:

1. Can move manually or with hydraulic side-shift to get close to buildings.
2. Use Single Standard chains for loose, damp soil.
3. Use Double Standard chains for harder, drier soil; they have double the teeth.
4. Use Half Rock & Frost chains for tough conditions like frozen or rocky ground.
5. Comes with trench cleaner arm, hoses, and flat face.
6. Includes three hydraulic hoses: two ½” hoses for In and Out, plus a case drain line to release motor pressure. Also includes flat-faced couplers.

KEY FEATURES:

• 48″ hydraulic trencher attachment for skid steer loaders
• Heavy-duty chain with wear-resistant teeth for consistent digging performance
• Adjustable trenching depth for flexible operation
• Robust hydraulic motor and planetary drive for high torque output
• Universal skid steer quick-attach system for easy connection
• Built with reinforced frame and replaceable wear parts

BENEFITS:

• Cuts clean, uniform trenches quickly and efficiently
• Reduces manual labor and increases jobsite productivity
• Performs reliably in a variety of soil and terrain conditions
• Minimizes downtime with durable, serviceable components
• Enhances versatility of your skid steer loader

APPLICATIONS:

• Compatible with standard-flow skid steer loaders
• ldeal for laying water lines, electrical conduits, and irrigation systems
• Suitable for contractors, landscapers, and property maintenance crews
• Fits Universal Standard Skid Steer Mounting Plate 45″ x 19″

Includes three hydraulic hoses: two 1/2″ hoses for In and Qut, plus a case drain line to release motor pressure. Also includes flat-faced couplers.

Model	ECSSCT72
Flow	20-40 GPM
Digging Depths	36″-60″
Trench width	6″-12″
Working Pressure (MPa)	15
Measurement	78” × 51” × 23”
Weight	892.87 lbs
Teeth material	36″-60″
