Description

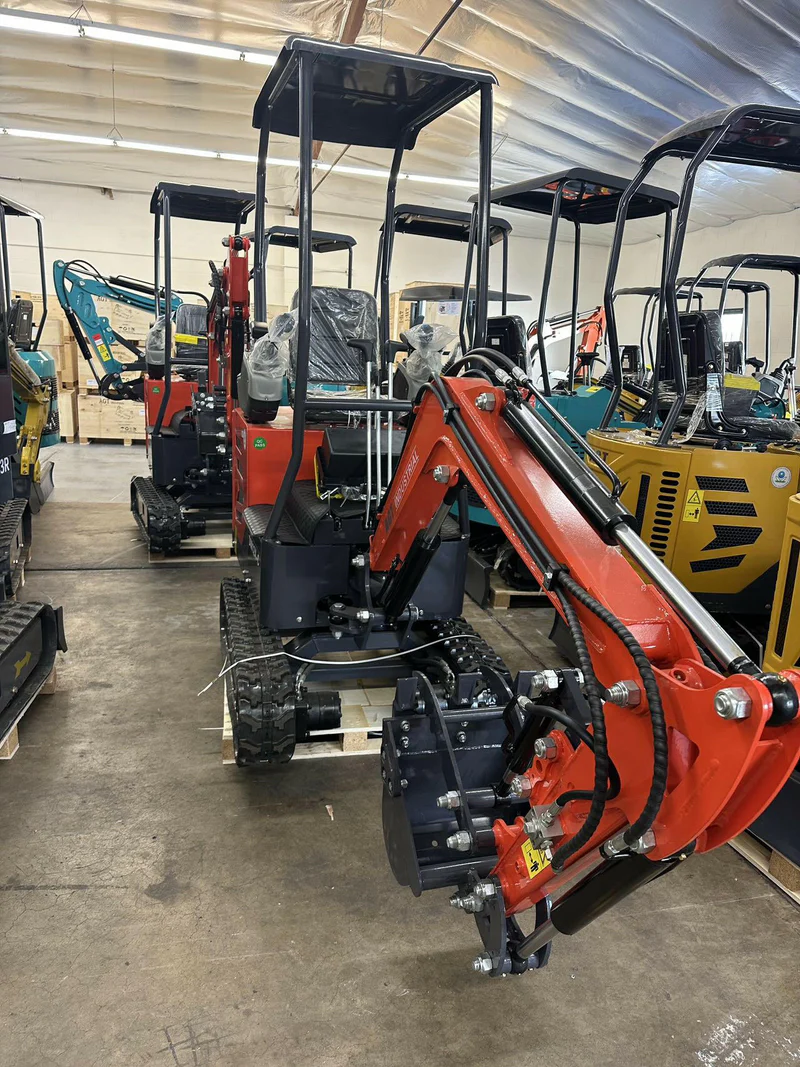

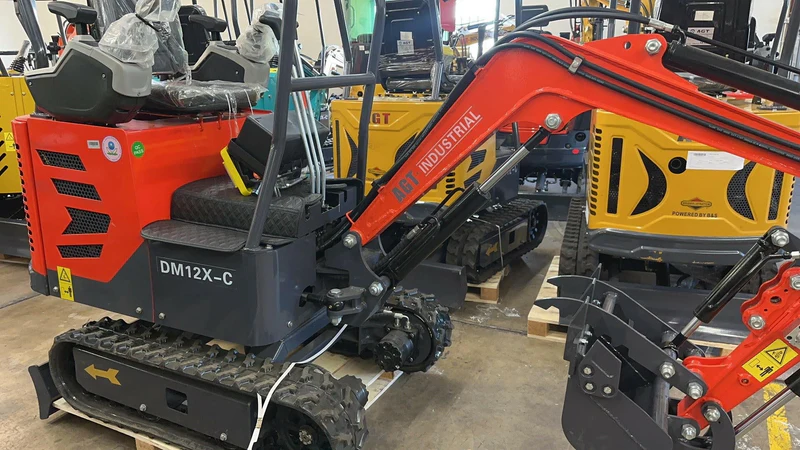

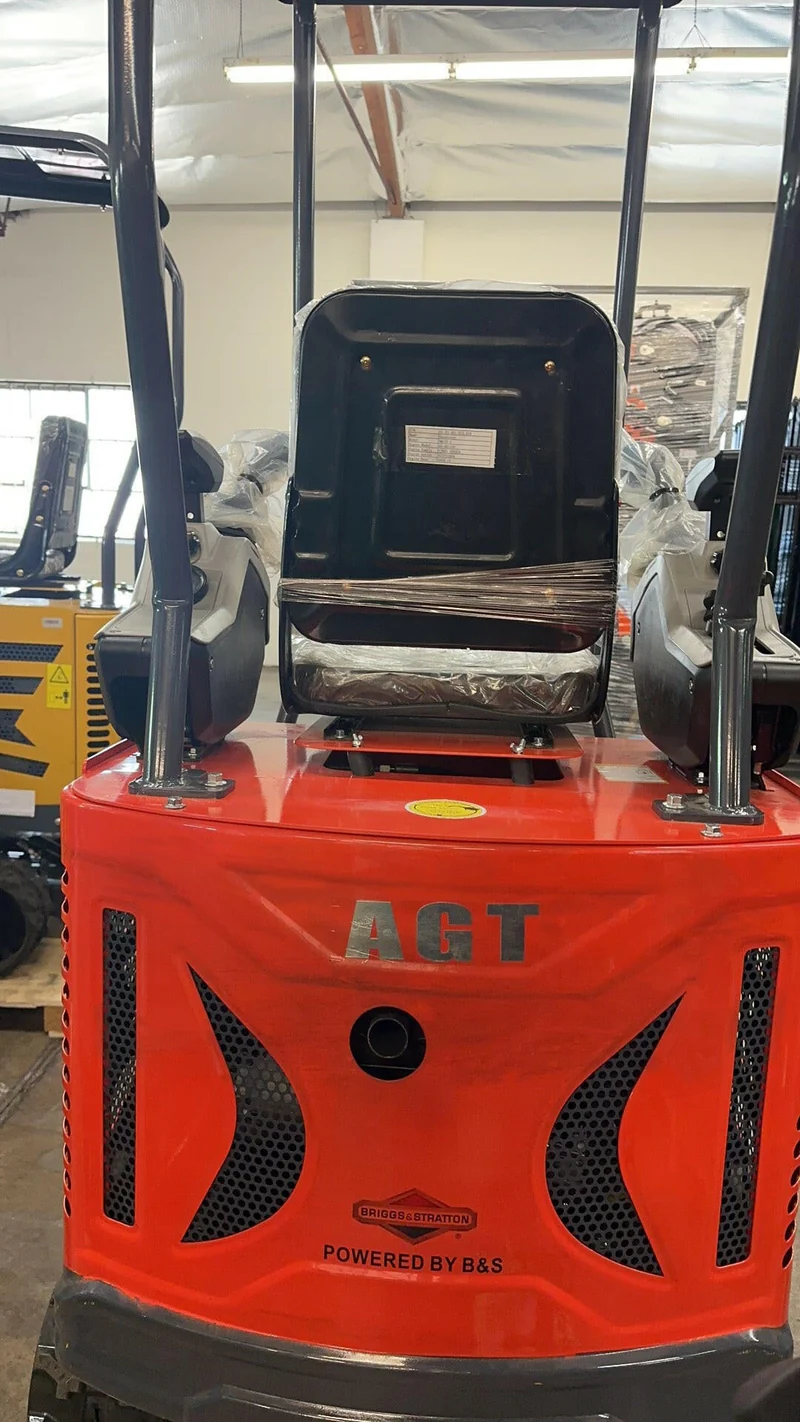

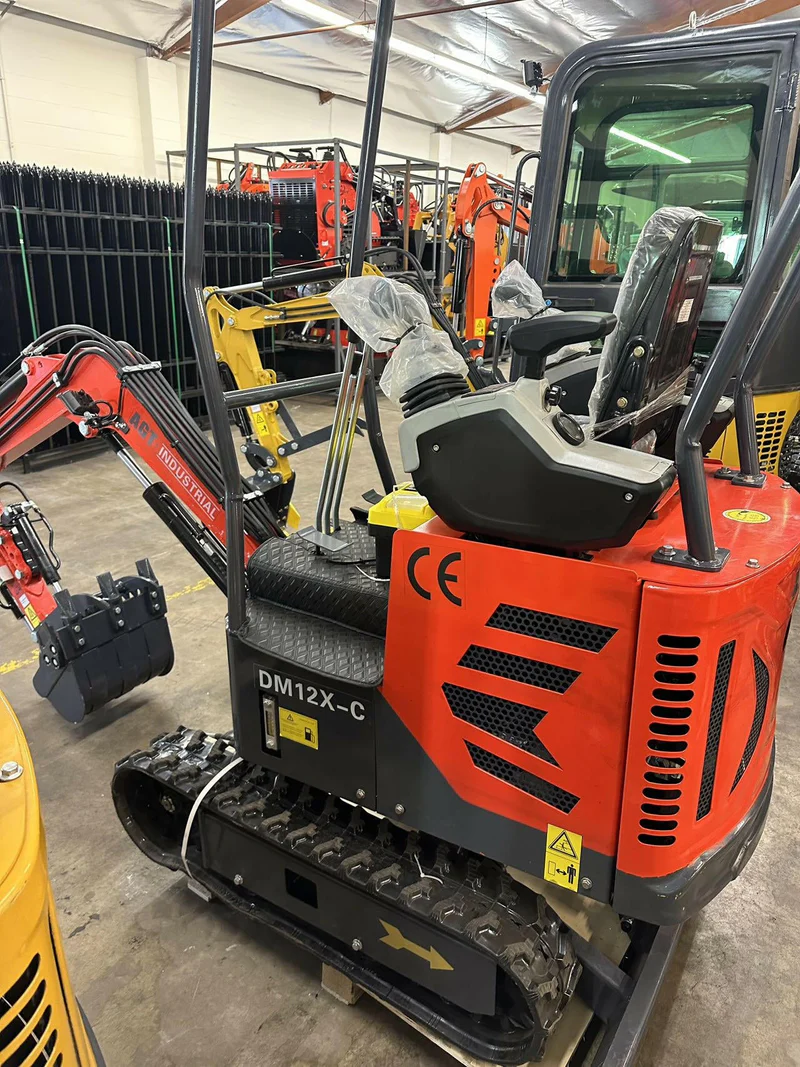

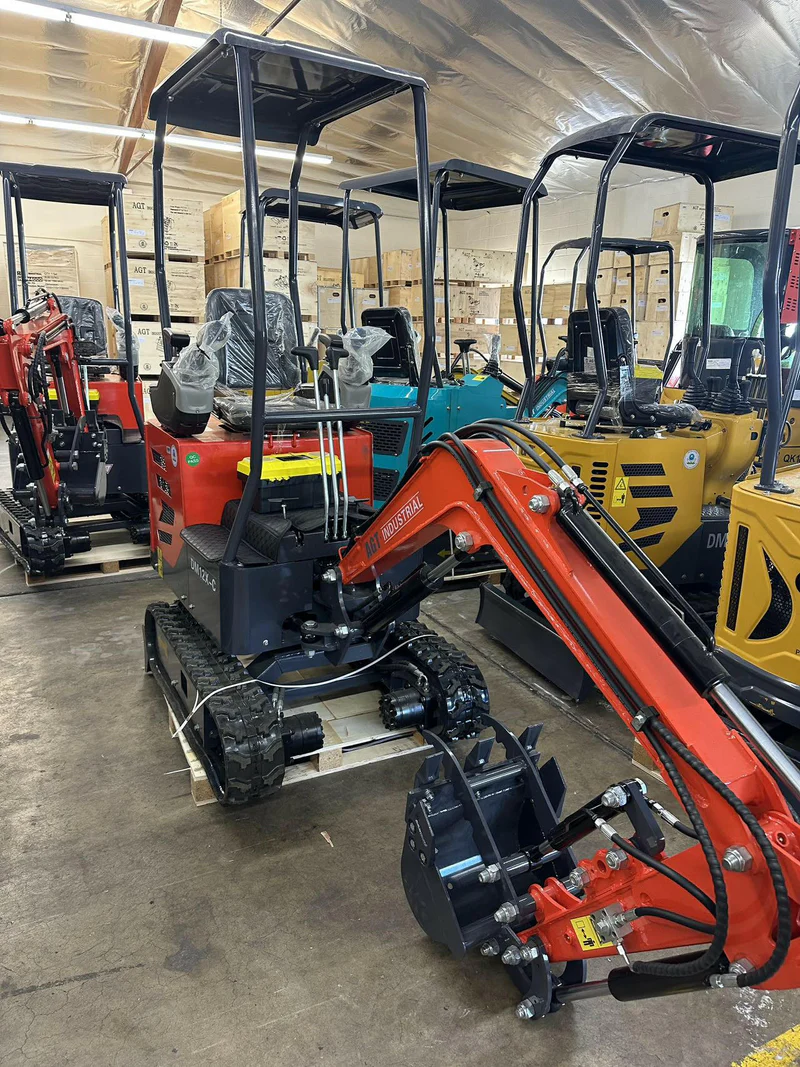

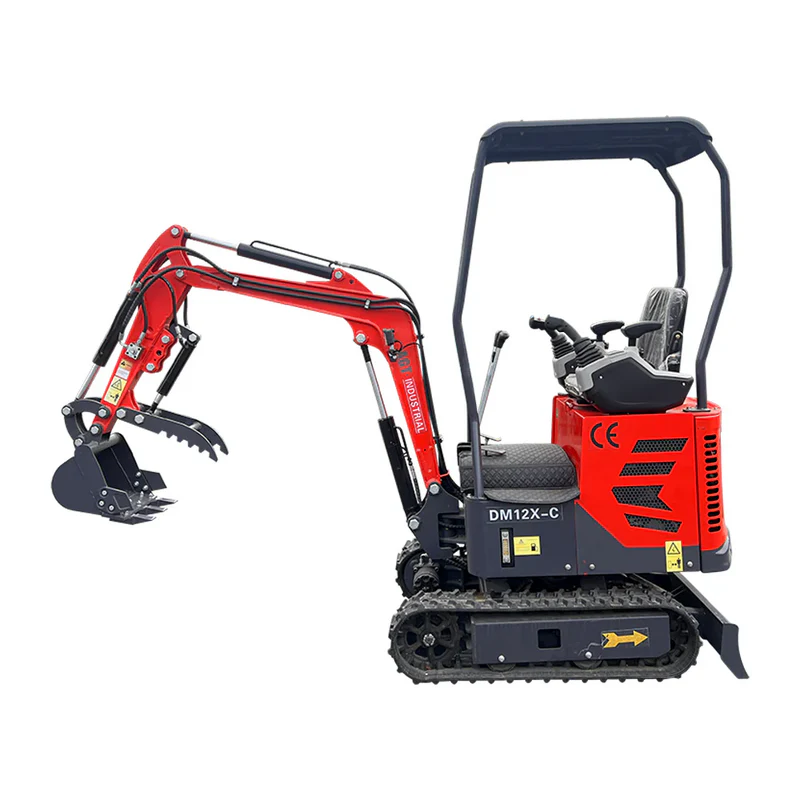

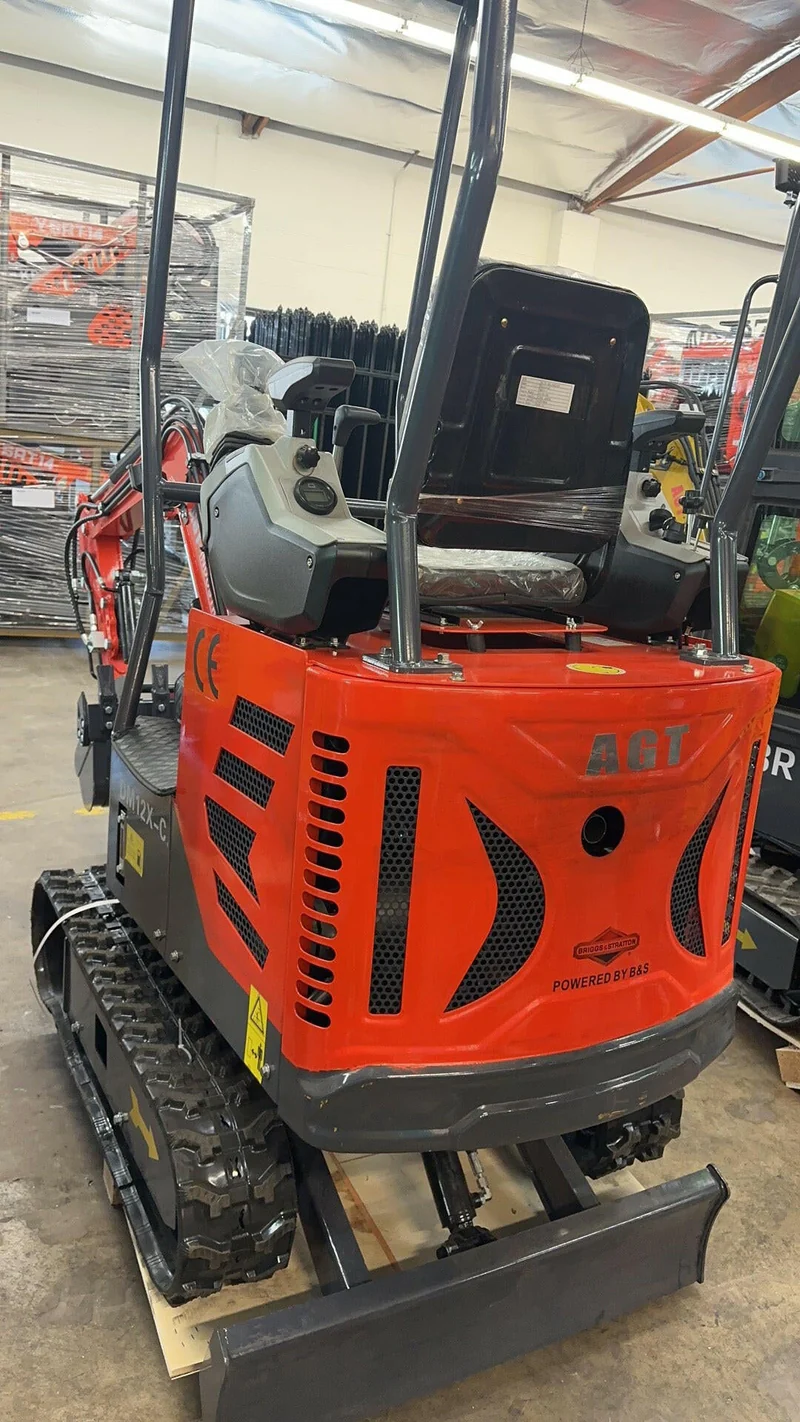

The DM 12X-C is a cutting-edge mini excavator with upgraded components to eliminate overheating issues. It’s an upgrade from our QH12 and H12 with a side swing boom, pilot controls and hydraulic thumb. Enjoy easy maintenance with convenient back bay engine access.
In Action Video
Exploded View Parts List
Technical Data:
- Operation Weight: 1.1 Ton
- Engine: B&S
- Max Angle: 30 Degree
Dimension
- Operating Weight: 1.1 Ton (2,425 lbs)
- Overall Length: 2,260 mm (89 in)
- Overall Width: 965 mm (38 in)
- Overall Height: 2,210 mm (87 in)
- Track Size: 180*72*37 (Width*Pitch Length*Links)
Working Range
- Max Digging Depth: 1,753 mm (69 in)
- Max Digging Height: 2,667 mm (105 in)
- Max Dumping Height: 1,905 mm (75 in)
- Max Reach at Ground: 3,073 mm (121 in)
- Dozer Blade Width: 900 mm (35 in)
- Dozer Blade Height: 200 mm (8 in)
Features

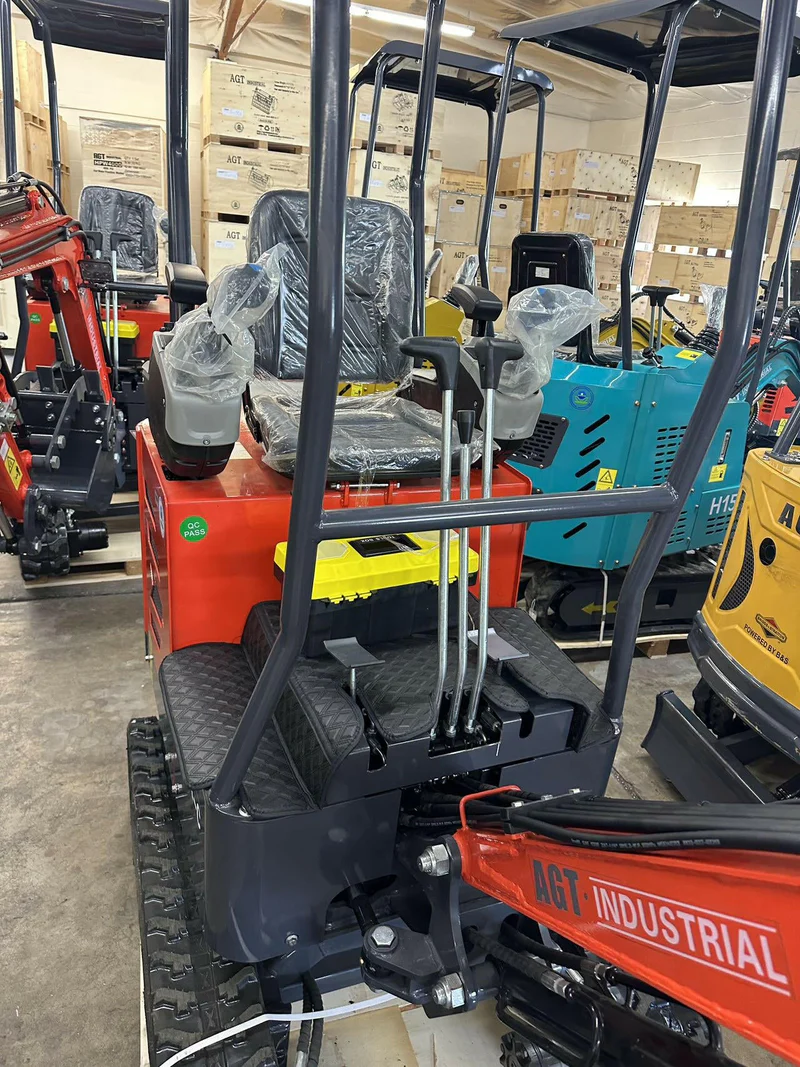

- Pilot Control
- Swing Boom
- Hydraulic Thumb
Engine
- Engine Brand: B&S
- Fuel Type: Gasoline
- Model: XR
- Rated Power: 10 kW (13.3 HP)
- Displacement: 420 cc
- Fuel Capacity: 6.6 L (1.7 gal)
- Fuel Consumption: 0.5 – 1.2 L/hr
- Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
- Hydraulic Pressure: 16 MPa (2,320 PSI)
- Hydraulic Tank Capacity: 18 L (4.75 gal)
- Travel Hydraulic Motor Type: BM6-310
- Swing Hydraulic Motor Type: BM2-250
