Description

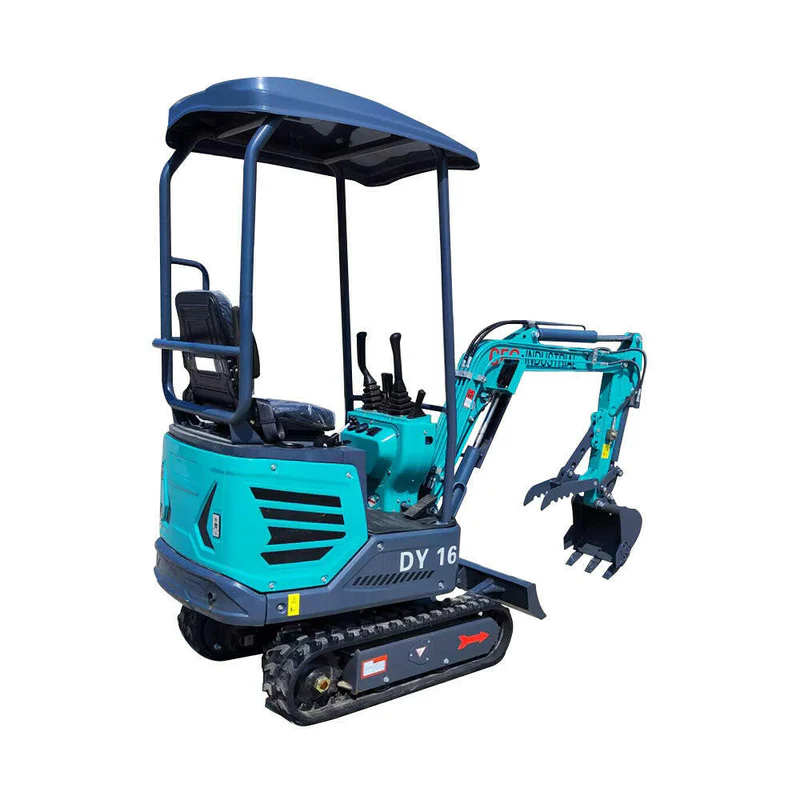

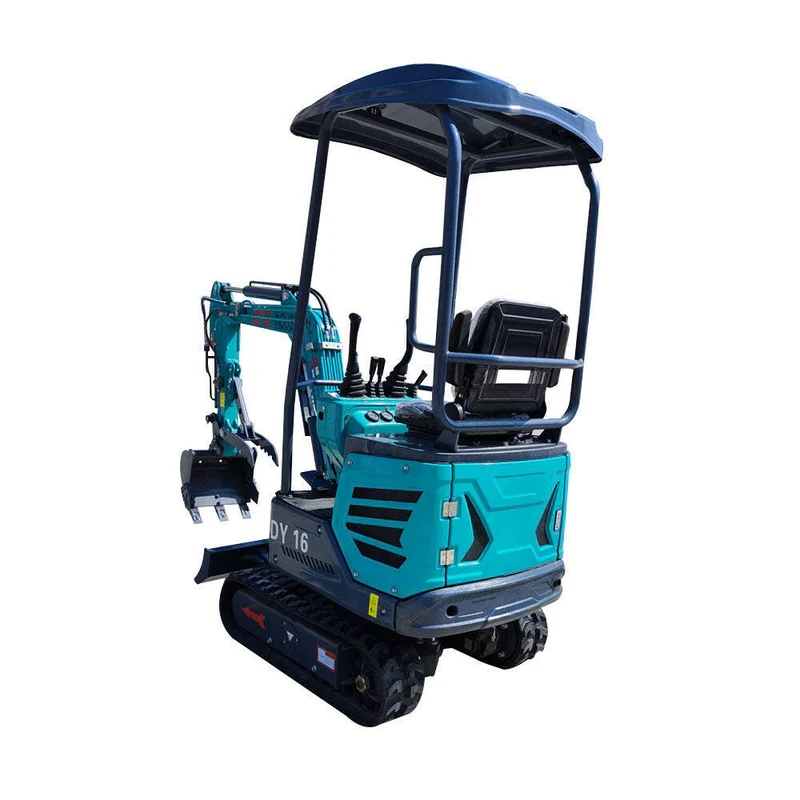

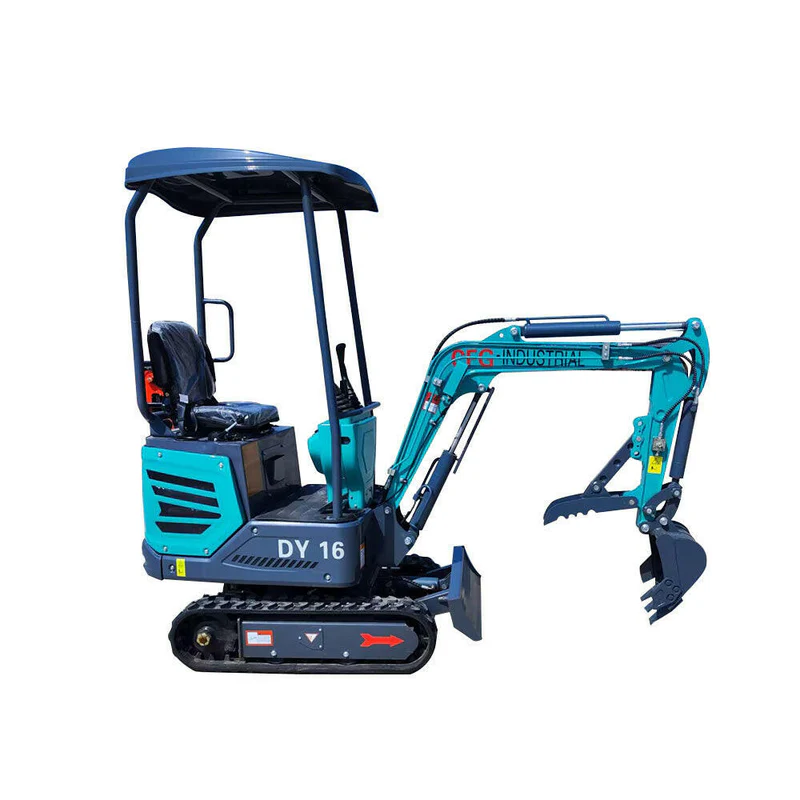

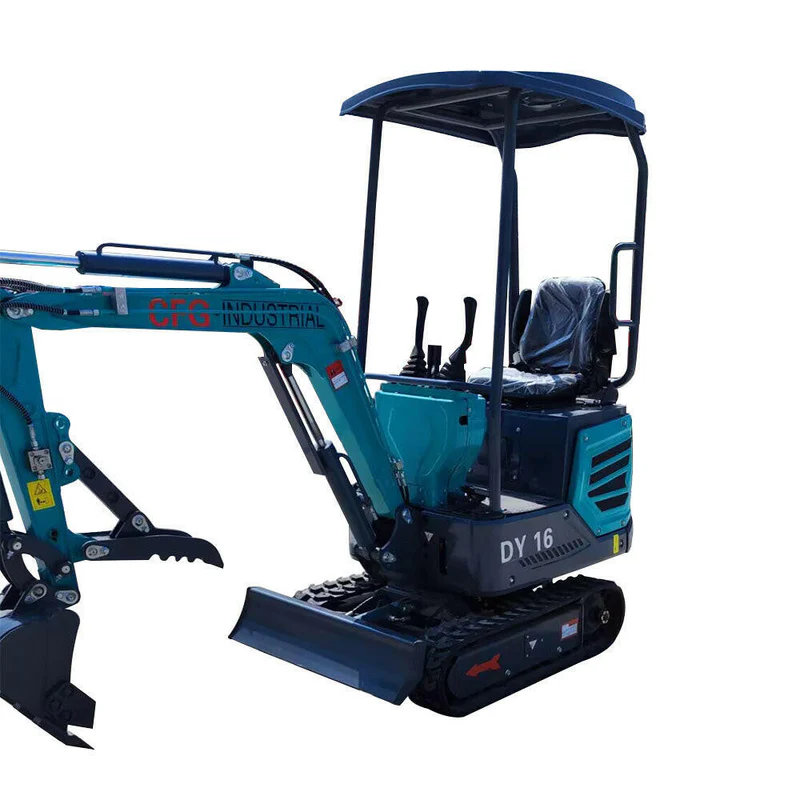

The CFG-DY16 is a compact and versatile mini excavator designed for various construction and landscaping tasks.

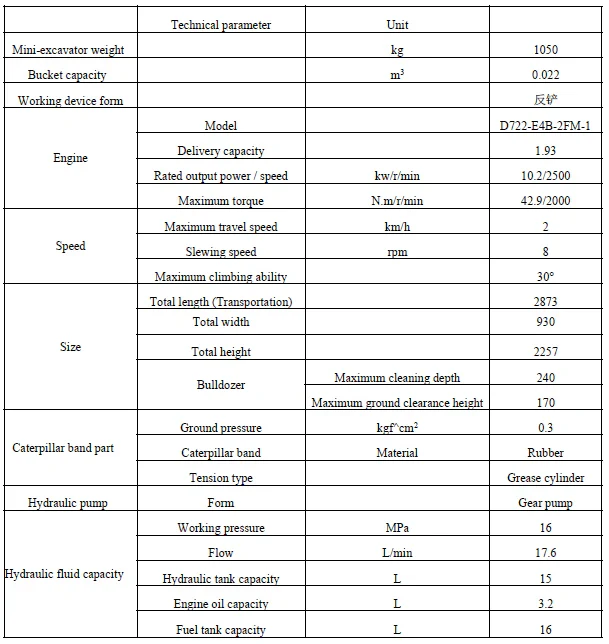

Technical Data:
- Mini-excavator weight: 1,050 kg
- Bucket capacity: 0.022 m³
- Working Device: Backhoe
Engine
- Model: D722-E4B-2FM-1
- Delivery capacity: 1.93
- Rated output power/speed: 10.2 kW / 2500 r/min
- Maximum torque: 42.9 N·m / 2000 r/min
Speed & Performance
- Maximum travel speed: 2 km/h
- Slewing speed: 8 rpm
- Maximum climbing ability: 30°

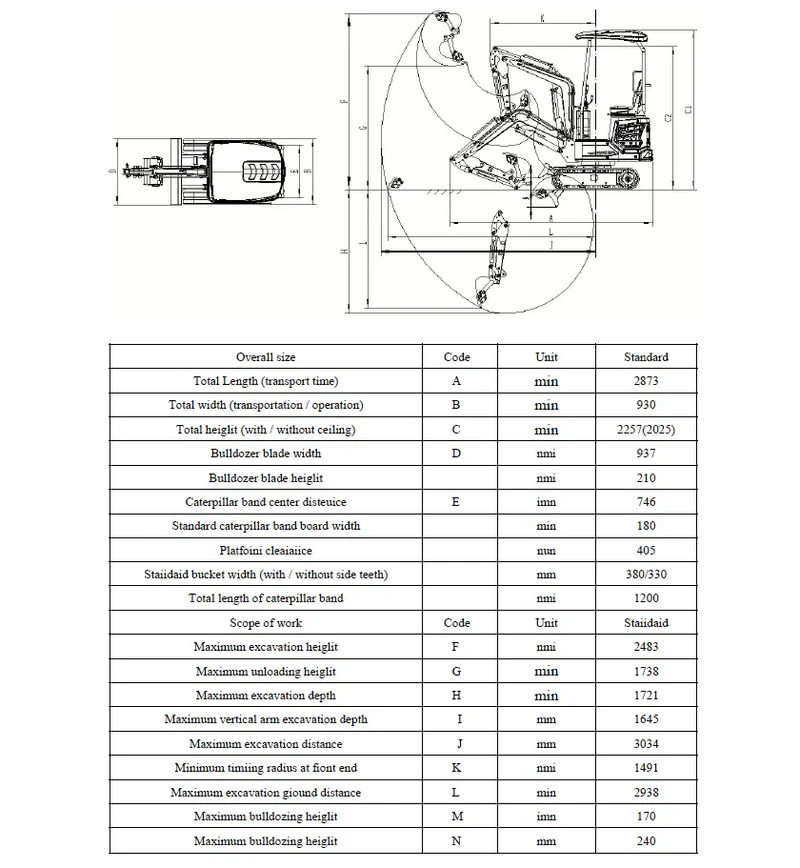

Size & Dimensions
- Total Length (Transportation): 2,873 mm
- Total Width: 930 mm
- Total Height (with/without ceiling): 2,257 mm / 2,025 mm
Bulldozer
- Blade Width: 937 mm
- Blade Height: 210 mm
- Maximum bulldozing height: 170 mm
- Maximum bulldozing depth: 240 mm

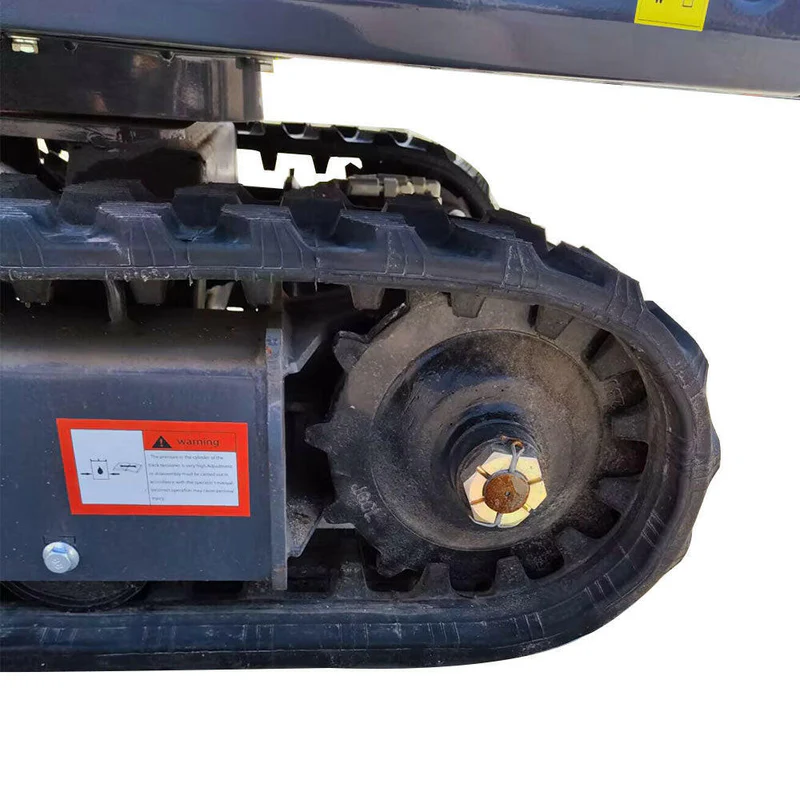

Caterpillar Band Part
- Ground pressure: 0.3 kgf/cm²
- Material: Rubber
- Center Distance: 746 mm
- Standard Board Width: 180 mm
- Total Length of Caterpillar Band: 1,200 mm
- Tension Type: Grease cylinder
Hydraulic System
- Pump Type: Gear pump
- Working Pressure: 16 MPa
- Flow Rate: 17.6 L/min
Fluid Capacities
- Hydraulic Tank Capacity: 15 L
- Engine Oil Capacity: 3.5 L
- Fuel Tank Capacity: 16 L
Scope of Work
- Maximum Excavation Height: 2,483 mm
- Maximum Unloading Height: 1,738 mm
- Maximum Excavation Depth: 1,721 mm
- Maximum Vertical Arm Excavation Depth: 1,645 mm
- Maximum Excavation Distance: 3,034 mm
- Minimum Turning Radius at Front End: 1,941 mm
- Maximum Excavation Ground Distance: 2,938 mm
